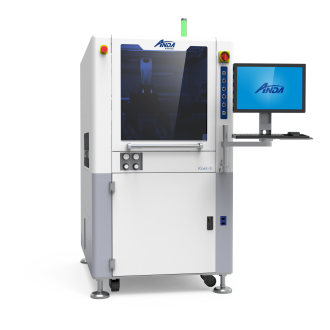

El iCoat-3 está diseñado para lograr un equilibrio entre recubrimiento y rendimiento sobre conformal coating. Este equipo para recubrimiento conformal coating selectivo viene con un cabezal simple y estructura de válvula doble con servo control en sus 3 ejes. Opcionalmente, la configuración de válvulas dobles o cuádruples es una variedad de disposición de válvulas y se adapta a las necesidades para los diferentes productos requeridos.
Especificaciones del sistema
| Board Handling | |
| Standard Work Area |
X: 450 mm (Standard), 580 mm (Optional) (X: 17.71" (Standard), 22.83" (Optional)) Y: 450 mm (Standard), 580 mm (Optional) (Y: 17.71" (Standard), 22.83" (Optional)) Z: 100 mm (Z: 3.93") |
| Maximum Components Height | ± 90 mm (± 3.54") from PCB |
| PCB Edge Clearance | ≥ 5mm (≥ 0.19") |
| Single Spray Width | 2 – 30 mm (0.078" – 1.18") |
| Maximum Conveyor Width | 460 mm (18.11") |
| Minimum Conveyor Width | 50 mm (1.95") |
| Transmission System | |
| Process Flow |
L to R (Standard), R to L (Optional) |
| Conveyor Height | 900 ± 20 mm (35.43" ± 0.79") |
| Conveyor Speed (XY) | 0.5 – 5 mm |
| Conveyor Width Adjustment | Automatic (motorized) |
| Rotation | Optional |
| Operation Configuration | |
| Numbers of Valves |
Dual valves in a row (fixed width) (Option: Quad values; dual row; tilt; manual adjustable width) |
| Maximum Speed | 800 mm/s |
| Repeatability | ± 0.02 mm (± 0.0007") |
| Facility | |
| Standard Footprint |
L : 900 mm (option: Max. 1010 mm) (L: 35.43“) (option: Max. 39.76“) W : 1300 mm (option : Max. 1360mm) (W: 51.18“) (option: Max. 53.54“) H : 1675 mm (H: 65.94“) |
| Weight | 530 kg |
| Motor Power | DC 24 V 69 W × 2 |
| Air Sources | 0.4 Mpa |
| Exhaust Requirement | 15 m³/min |
| Input Power | AC 220 V 50/60 Hz |
| Total Power | 2.2 kw |
| Interface | |
| Controller |
Integrated microprocessor controllers |
| Software | Anda user interface software with Windows 7 |
| Programming | Keyboard & mouse mode |
| Communications Protocol | SMEMA |
